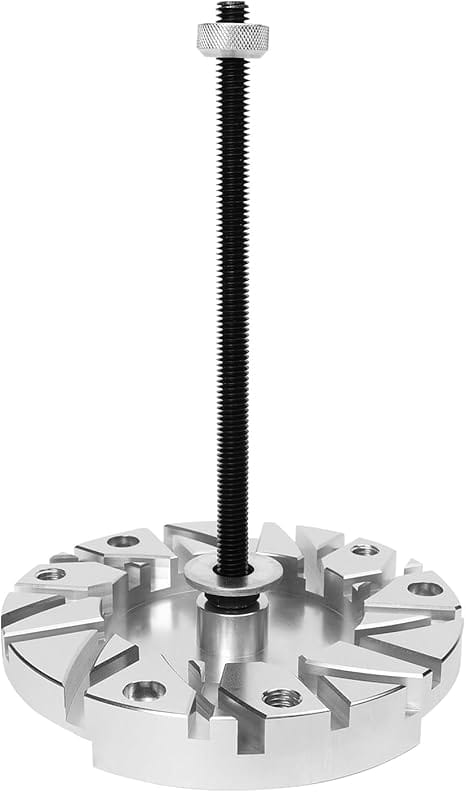

Primary Clutch Holding Fixture Tool, Compatible with Polaris P-90 ATV & UTV Clutch Tool Model Year 1985 to current, P-85 Snowmobile Clutch Tool Model Year 1972 to current
$34.99
- 【HIGH QUALITY】Our primary clutch holding fixture plate, which is made of high-quality metal enhances the strength and durability to ensure it can work for a long time.
- 【FUNCTION】The Primary clutch fixing fixture tool is an essential tool when you need to rebuild, disassemble, or service your primary clutch to repair spiders and moveable sheave.
- 【DESIGN】This tool has the straight fins AND the curved models as seen so even fits models like 550, 850, and Sportsman 1000 with the curved fins also covered. Seems to fit all the Polaris CVT Primary clutches. You can mount with bolts to your workbench or clamp firmly into a bench vise.
- 【FITMENT】Compatible with Polaris P90 ATV & UTV Clutch Tool Model Year 1985 to current, P85 Snowmobile Clutch Tool Model Year 1972 to current. Please attention: NOT fit the 2018 and newer Ranger 1000 P90-X clutch.
- 【Package Included】1x Primary Clutch Sheave Fixture Holding Tool. You can search the video if have questions when installing.
Description
It is an essential tool when you need to rebuild, disassemble, or service your primary clutch to repair spiders and moveable sheaves.
The tools in this kit are constructed of 100% quality cold-rolled carbon steel, with a hardness of HRC 37. This high-quality, heat-treated steel ensures lasting durability and strength for repeated use. The tool features a durable, black oxide finish.
This Drive Clutch Holding Fixture Tool fits the following models:
Polaris P-90 ATV & UTV Clutch Tool Model Year 1985 to current
Polaris P-85 Snowmobile Clutch Tool Model Year 1972 to current
It comes with everything needed to hold the clutch besides the vise as seen. This tool both angled and straight slots, allows the versatility to use this holder on basically all of the Polaris ATV, UTV, and snowmobile Primary clutches. This covers every 250cc -1000cc Polaris side ATV and by sides up to Ranger and RZR 1000 XP.
The Tool does NOT fit the 2018 and newer Ranger 1000 with the P90-X clutch.
The holding fixture has cutouts on the bottom that allow the tool to be clamped firmly into a bench vise. There are also holes to allow mounting with bolts to secure it to a solid workbench. Screw the provided threaded shaft into the holder. Use the provided nut and washer to tighten down against the holder to hold the threaded rod firmly in place. Next, slide the clutch sheave assembly over the threaded rod. Allow the fins on the bottom of the clutch sheave to engage the slots in the holder. Lastly, use the provided knurled nut with the tapered end towards the clutch shaft and screw down on the rod until snug. You are now ready to begin disassembly of the clutch. We offer the clutch compression tool, spider nut socket tool, and spider removal tool which are also needed when disassembling the clutch. You can find these in our storefront.
